Monitoring coastal erosion along Africa’s coastline

• Products used: ls8_sr, ls9_sr

Keywords: data used; landsat 8, data used; landsat 9, water; tide modelling, water; waterline extraction, band index; MNDWI; data methods; compositing

Background

Over 40% of the world’s population lives within 100 km of the coastline. However, coastal environments are constantly changing, with erosion and coastal change presenting a major challenge to valuable coastal infrastructure and important ecological habitats. Up-to-date data on coastal change and erosion is essential for coastal managers to be able to identify and minimise the impacts of coastal change and erosion.

Monitoring coastlines and rivers using field surveys can be challenging and hazardous, particularly at regional or national scale. Aerial photography and LiDAR can be used to monitor coastal change, but this is often expensive and requires many repeated flights over the same areas of coastline to build up an accurate history of how the coastline has changed across time.

Digital Earth Africa use case

Imagery from satellites such as the NASA/USGS Landsat program is available for free for the entire planet, making satellite imagery a powerful and cost-effective tool for monitoring coastlines and rivers at regional or national scale. However, the usefulness of satellite imagery in the coastal zone can be affected by the presence of clouds, sun-glint over water, poor water quality (e.g. sediment) and the influence of tides.

The effect of these factors can be reduced by combining individual noisy images into cleaner “summary” or composite layers, and filtering the data to focus only on images taken at certain tidal conditions (e.g. mid-tide). These clean, tidally-constrained composite images can then be used to identify and extract the precise boundary between water and land. This allows us to extract accurate shorelines that can be compared across time to reveal hotspots of erosion and coastal change.

Description

In this example, we use a simplified version of the DE Africa Coastlines method to combine data from the Landsat 8 and 9 satellites with image compositing and tide filtering techniques to accurately map shorelines across time, and identify areas that have changed significantly between 2013 and 2021. The worked example demonstrates how to:

1. Load in a cloud-free Landsat time series

2. Compute a water index (MNDWI)

3. Filter images by tide height to discard low and high tide imagery

4. Create “summary” or composite images for each year of data

5. Extract and visualise annual shorelines across time

6. Use these annual shorelines to calculate and visualise rates of coastal change

Getting started

To run this analysis, run all the cells in the notebook, starting with the “Load packages” cell.

After finishing the analysis, return to the “Analysis parameters” cell, modify some values (e.g. choose a different location or time period to analyse) and re-run the analysis. There are additional instructions on modifying the notebook at the end.

Load packages

First we need to install additional tools from the DE Africa Coastlines repository that will allow us to estimate rates of coastal change. > Note: If you run into any error messages in this analysis, try restarting the notebook by clicking Kernel, then Restart Kernel and Clear All Outputs.

pip install -q git+https://github.com/digitalearthafrica/deafrica-coastlines.git --disable-pip-version-check

^C
ERROR: Operation cancelled by user
Note: you may need to restart the kernel to use updated packages.

Now we can load key Python packages and supporting functions for the analysis.

%matplotlib inline

import os
import datacube
import numpy as np
import xarray as xr
import pandas as pd
import geopandas as gpd
import matplotlib.pyplot as plt
from shapely.ops import nearest_points

from datacube.utils.geometry import Geometry
from deafrica_tools.datahandling import load_ard, mostcommon_crs
from deafrica_tools.bandindices import calculate_indices
from deafrica_tools.coastal import tidal_tag
from deafrica_tools.spatial import subpixel_contours, xr_rasterize
from deafrica_tools.plotting import display_map, rgb, map_shapefile
from deafrica_tools.dask import create_local_dask_cluster
from coastlines.vector import points_on_line, annual_movements, calculate_regressions
from deafrica_tools.areaofinterest import define_area

import warnings
warnings.filterwarnings("ignore")

/usr/local/lib/python3.8/dist-packages/geopandas/_compat.py:112: UserWarning: The Shapely GEOS version (3.8.0-CAPI-1.13.1 ) is incompatible with the GEOS version PyGEOS was compiled with (3.10.3-CAPI-1.16.1). Conversions between both will be slow.
  warnings.warn(

Set up a Dask cluster

Dask can be used to better manage memory use down and conduct the analysis in parallel. For an introduction to using Dask with Digital Earth Africa, see the Dask notebook.

Note: We recommend opening the Dask processing window to view the different computations that are being executed; to do this, see the Dask dashboard in DE Africa section of the Dask notebook.

To use Dask, set up the local computing cluster using the cell below.

client = create_local_dask_cluster(return_client=True)

Client Scheduler: tcp://127.0.0.1:39205 Dashboard: /user/mpho.sadiki@digitalearthafrica.org/proxy/39301/status

Cluster Workers: 1 Cores: 4 Memory: 28.14 GB

Connect to the datacube

Activate the datacube database, which provides functionality for loading and displaying stored Earth observation data.

dc = datacube.Datacube(app="Coastal_erosion")

Analysis parameters

The following cell set important parameters for the analysis:

• lat: The central latitude to analyse (e.g. 14.283).

• lon: The central longitude to analyse (e.g. -16.921).

• buffer: The number of square degrees to load around the central latitude and longitude. For reasonable loading times, set this as 0.1 or lower.

• time_range: The date range to analyse (e.g. ('2013', '2020'))

• time_step: This parameter allows us to choose the length of the time periods we want to compare: e.g. shorelines for each year, or shorelines for each six months etc. 1Y will generate one coastline for every year in the dataset; 6M will produce a coastline for every six months, etc.

• tide_range: The minimum and maximum proportion of the tidal range to include in the analysis. For example, tide_range = (0.50, 1.00) will select all satellite images taken when the tide was greater than the median (i.e. 50th percentile) of all tide heights and less than the maximum (i.e. 100th percentile) of all tide heights. This allows you to seperate the effect of erosion from the influence of tides by producing shorelines for specific tidal conditions (e.g. low tide, average tide, high tide shorelines etc).

Select location

To define the area of interest, there are two methods available:

1. By specifying the latitude, longitude, and buffer. This method requires you to input the central latitude, central longitude, and the buffer value in square degrees around the center point you want to analyze. For example, lat = 10.338, lon = -1.055, and buffer = 0.1 will select an area with a radius of 0.1 square degrees around the point with coordinates (10.338, -1.055).

2. By uploading a polygon as a GeoJSON or Esri Shapefile. If you choose this option, you will need to upload the geojson or ESRI shapefile into the Sandbox using Upload Files button |upload\_files\_icon.png| in the top left corner of the Jupyter Notebook interface. ESRI shapefiles must be uploaded with all the related files (.cpg, .dbf, .shp, .shx). Once uploaded, you can use the shapefile or geojson to define the area of interest. Remember to update the code to call the file you have uploaded.

To use one of these methods, you can uncomment the relevant line of code and comment out the other one. To comment out a line, add the "#" symbol before the code you want to comment out. By default, the first option which defines the location using latitude, longitude, and buffer is being used.

If running the notebook for the first time, keep the default settings below. This will demonstrate how the analysis works and provide meaningful results. The example explores coastal change in Ponto, Senegal.

To run the notebook for a different area, make sure Landsat 8 and 9 data is available for the new location, which you can check at the DE Africa Explorer (use the drop-down menu to view all Landsat products).

To ensure that the tidal modelling part of this analysis works correctly, please make sure the centre of the study area is located over water when setting lat_range and lon_range.

# Method 1: Specify the latitude, longitude, and buffer
aoi = define_area(lat=14.29, lon=-16.92, buffer=0.015)

# Method 2: Use a polygon as a GeoJSON or Esri Shapefile.
#aoi = define_area(shapefile_path='aoi.shp')

#Create a geopolygon and geodataframe of the area of interest
geopolygon = Geometry(aoi["features"][0]["geometry"], crs="epsg:4326")
geopolygon_gdf = gpd.GeoDataFrame(geometry=[geopolygon], crs=geopolygon.crs)

# Get the latitude and longitude range of the geopolygon
lat_range = (geopolygon_gdf.total_bounds[1], geopolygon_gdf.total_bounds[3])
lon_range = (geopolygon_gdf.total_bounds[0], geopolygon_gdf.total_bounds[2])


# Set the range of dates for the analysis, time step and tide range
time_range = ('2013', '2021')
time_step = '1Y'
tide_range = (0.25, 0.75)

View the selected location

The next cell will display the selected area on an interactive map. Feel free to zoom in and out to get a better understanding of the area you’ll be analysing. Clicking on any point of the map will reveal the latitude and longitude coordinates of that point.

display_map(x=lon_range, y=lat_range)

Make this Notebook Trusted to load map: File -> Trust Notebook

Load cloud-masked Landsat data

The first step in this analysis is to load in Landsat data for the lat_range, lon_range and time_range we provided above. The code below uses the load_ard function to load in data from the Landsat 8 and 9 satellites for the area and time specified. For more information, see the Using load_ard notebook. The function will also automatically mask out clouds from the dataset, allowing us to focus on pixels that contain useful data:

# Create the 'query' dictionary object, which contains the longitudes,
# latitudes and time provided above
query = {
    'x': lon_range,
    'y': lat_range,
    'time': time_range,
    'measurements': ['red', 'green', 'blue', 'swir_1'],
    'resolution': (-30, 30),
}

# Identify the most common projection system in the input query
output_crs = mostcommon_crs(dc=dc, product='ls8_sr', query=query)

# Load available data Landsat 8
landsat_ds = load_ard(dc=dc,
                      products=['ls8_sr',
                                'ls9_sr'
                               ],
                      output_crs=output_crs,
                      align=(15, 15),
                      dask_chunks={'time': 1},
                      group_by='solar_day',
                      **query)

Using pixel quality parameters for USGS Collection 2
Finding datasets
    ls8_sr
    ls9_sr
Applying pixel quality/cloud mask
Re-scaling Landsat C2 data
Returning 192 time steps as a dask array

Once the load is complete, examine the data by printing it in the next cell. The Dimensions argument revels the number of time steps in the data set, as well as the number of pixels in the x (longitude) and y (latitude) dimensions.

print(landsat_ds)

<xarray.Dataset>
Dimensions:      (time: 192, y: 112, x: 110)
Coordinates:
  * time         (time) datetime64[ns] 2013-03-26T11:26:35.081094 ... 2021-12...
  * y            (y) float64 1.582e+06 1.582e+06 ... 1.579e+06 1.579e+06
  * x            (x) float64 2.912e+05 2.913e+05 ... 2.945e+05 2.945e+05
    spatial_ref  int32 32628
Data variables:
    red          (time, y, x) float32 dask.array<chunksize=(1, 112, 110), meta=np.ndarray>
    green        (time, y, x) float32 dask.array<chunksize=(1, 112, 110), meta=np.ndarray>
    blue         (time, y, x) float32 dask.array<chunksize=(1, 112, 110), meta=np.ndarray>
    swir_1       (time, y, x) float32 dask.array<chunksize=(1, 112, 110), meta=np.ndarray>
Attributes:
    crs:           EPSG:32628
    grid_mapping:  spatial_ref

Clip the datasets to the shape of the area of interest

A geopolygon represents the bounds and not the actual shape because it is designed to represent the extent of the geographic feature being mapped, rather than the exact shape. In other words, the geopolygon is used to define the outer boundary of the area of interest, rather than the internal features and characteristics.

Clipping the data to the exact shape of the area of interest is important because it helps ensure that the data being used is relevant to the specific study area of interest. While a geopolygon provides information about the boundary of the geographic feature being represented, it does not necessarily reflect the exact shape or extent of the area of interest.

#Rasterise the area of interest polygon
aoi_raster = xr_rasterize(gdf=geopolygon_gdf,da=landsat_ds, transform=landsat_ds.geobox.transform,
                                   crs=landsat_ds.crs)
#Mask the dataset to the rasterised area of interest
landsat_ds = landsat_ds.where(aoi_raster==1)

Plot example timestep in true colour

To visualise the data, use the pre-loaded rgb utility function to plot a true colour image for a given time-step. White areas indicate where clouds or other invalid pixels in the image have been masked.

Change the value for timestep and re-run the cell to plot a different timestep (timesteps are numbered from 0 to n_time - 1 where n_time is the total number of timesteps; see the time listing under the Dimensions category in the dataset print-out above).

# Set the timesteps to visualise
timestep = 37

# Generate RGB plots at each timestep
rgb(landsat_ds,
    index=timestep)

Compute Modified Normalised Difference Water Index

To extract shoreline locations, we need to be able to seperate water from land in our study area. To do this, we can use our Landsat data to calculate a water index called the Modified Normalised Difference Water Index, or MNDWI. This index uses the ratio of green and mid-infrared radiation to identify the presence of water (Xu 2006). The formula is:

\[\begin{aligned} \text{MNDWI} &= \frac{(\text{Green} - \text{MIR})}{(\text{Green} + \text{MIR})} \end{aligned}\]

where Green is the green band and MIR is the mid-infrared band. For Landsat, we can use the Short-wave Infrared (SWIR) 1 band as our measure for MIR.

When it comes to interpreting the index, High values (greater than 0, blue colours) typically represent water pixels, while low values (less than 0, red colours) represent land. You can use the cell below to calculate and plot one of the images after calculating the index.

# Calculate the water index
landsat_ds = calculate_indices(landsat_ds, index='MNDWI', satellite_mission='ls')

# Plot the resulting image for the same timestep selected above
landsat_ds.MNDWI.isel(time=timestep).plot(cmap='RdBu',
                                          size=6,
                                          vmin=-0.5,
                                          vmax=0.5)
plt.show()

How does the plot of the index compare to the optical image from earlier? Was there water or land anywhere you weren’t expecting?

Model tide heights

The location of the shoreline can vary greatly from low to high tide. In the code below, we aim to reduce the effect of tides by keeping only the satellite images that were taken at specific tidal conditions. For example, if tide_range = (0.25, 0.75), we are telling the analysis to keep only satellite images acquired at greater than the lowest 25th percentile of tide height, and less than the 75th percentile of tide height. This will reduce variability caused by satellite images acquired during high and low tide conditions.

The tidal_tag function below uses the OTPS TPXO8 tidal model to calculate the height of the tide at the exact moment each satellite image in our dataset was taken, and adds this as a new tide_height attribute in our dataset.

Important note: this function can only model tides correctly if the centre of your study area is located over water. If this isn’t the case, you can specify a custom tide modelling location by passing a coordinate to tidepost_lat and tidepost_lon (e.g. tidepost_lat=14.283, tidepost_lon=-16.921).

# Calculate tides for each timestep in the satellite dataset
landsat_ds = tidal_tag(ds=landsat_ds, tidepost_lat=None, tidepost_lon=None)

# Print the output dataset with new `tide_height` variable
print(landsat_ds)

Setting tide modelling location from dataset centroid: -16.92, 14.29
<xarray.Dataset>
Dimensions:      (time: 192, y: 112, x: 110)
Coordinates:
  * time         (time) datetime64[ns] 2013-03-26T11:26:35.081094 ... 2021-12...
  * y            (y) float64 1.582e+06 1.582e+06 ... 1.579e+06 1.579e+06
  * x            (x) float64 2.912e+05 2.913e+05 ... 2.945e+05 2.945e+05
    spatial_ref  int32 32628
Data variables:
    red          (time, y, x) float32 dask.array<chunksize=(1, 112, 110), meta=np.ndarray>
    green        (time, y, x) float32 dask.array<chunksize=(1, 112, 110), meta=np.ndarray>
    blue         (time, y, x) float32 dask.array<chunksize=(1, 112, 110), meta=np.ndarray>
    swir_1       (time, y, x) float32 dask.array<chunksize=(1, 112, 110), meta=np.ndarray>
    MNDWI        (time, y, x) float32 dask.array<chunksize=(1, 112, 110), meta=np.ndarray>
    tide_height  (time) float64 0.007 -0.157 0.536 0.579 ... 0.033 -0.028 0.067
Attributes:
    crs:           EPSG:32628
    grid_mapping:  spatial_ref

Now that we have modelled tide heights, we can plot them to visualise the range of tide that was captured by Landsat across our time series. In the plot below, the grey box shows the subset of the tidal range we selected using the tide_range parameter. The plot should make it clear that limiting the range of the tides for the analysis should give you more consistent results. A large variance in the tide height could obscure your results, so consistency is critical as you want to compare the change in the shoreline from year to year.

# Calculate the min and max tide heights to include based on the % range
min_tide, max_tide = landsat_ds.tide_height.quantile(tide_range)

# Plot the resulting tide heights for each Landsat image:
landsat_ds.tide_height.plot(marker="o", markersize=3)
plt.axhspan(min_tide, max_tide, color='grey', alpha=0.3)
plt.title('Satellite observations by tide height')
plt.show()

Filter Landsat images by tide height

Here we take the Landsat dataset and only keep the images with tide heights we want to analyse (i.e. tides within the heights given by tide_range). This will result in a smaller number of images (e.g. ~100 images compared to ~190):

# Keep timesteps larger than the min tide, and smaller than the max tide
landsat_filtered = landsat_ds.sel(time=(landsat_ds.tide_height > min_tide) &
                                       (landsat_ds.tide_height <= max_tide))
print(landsat_filtered)

<xarray.Dataset>
Dimensions:      (time: 96, y: 112, x: 110)
Coordinates:
  * time         (time) datetime64[ns] 2013-03-26T11:26:35.081094 ... 2021-12...
  * y            (y) float64 1.582e+06 1.582e+06 ... 1.579e+06 1.579e+06
  * x            (x) float64 2.912e+05 2.913e+05 ... 2.945e+05 2.945e+05
    spatial_ref  int32 32628
Data variables:
    red          (time, y, x) float32 dask.array<chunksize=(1, 112, 110), meta=np.ndarray>
    green        (time, y, x) float32 dask.array<chunksize=(1, 112, 110), meta=np.ndarray>
    blue         (time, y, x) float32 dask.array<chunksize=(1, 112, 110), meta=np.ndarray>
    swir_1       (time, y, x) float32 dask.array<chunksize=(1, 112, 110), meta=np.ndarray>
    MNDWI        (time, y, x) float32 dask.array<chunksize=(1, 112, 110), meta=np.ndarray>
    tide_height  (time) float64 0.007 -0.157 0.194 0.178 ... 0.033 -0.028 0.067
Attributes:
    crs:           EPSG:32628
    grid_mapping:  spatial_ref

Combine observations into noise-free summary images

Individual remote sensing images can be affected by noisy data, including clouds, sunglint and poor water quality conditions (e.g. sediment). To produce cleaner images that can be compared more easily across time, we can create ‘summary’ images or composites that combine multiple images into one image to reveal the median or ‘typical’ appearance of the landscape for a certain time period. In this case, we use the median as the summary statistic because it prevents strong outliers (like clouds that were not correctly identified by the cloud mask) from skewing the data, which would not be the case if we were to use the mean.

In the code below, we take the time series of images and combine them into single images for each time_step. For example, if time_step = '2Y', the code will produce one new image for each two-year period in the dataset. This step can take several minutes to load if the study area is large.

Note: We recommend opening the Dask processing window to view the different computations that are being executed; to do this, see the Dask dashboard in DE Africa section of the Dask notebook.

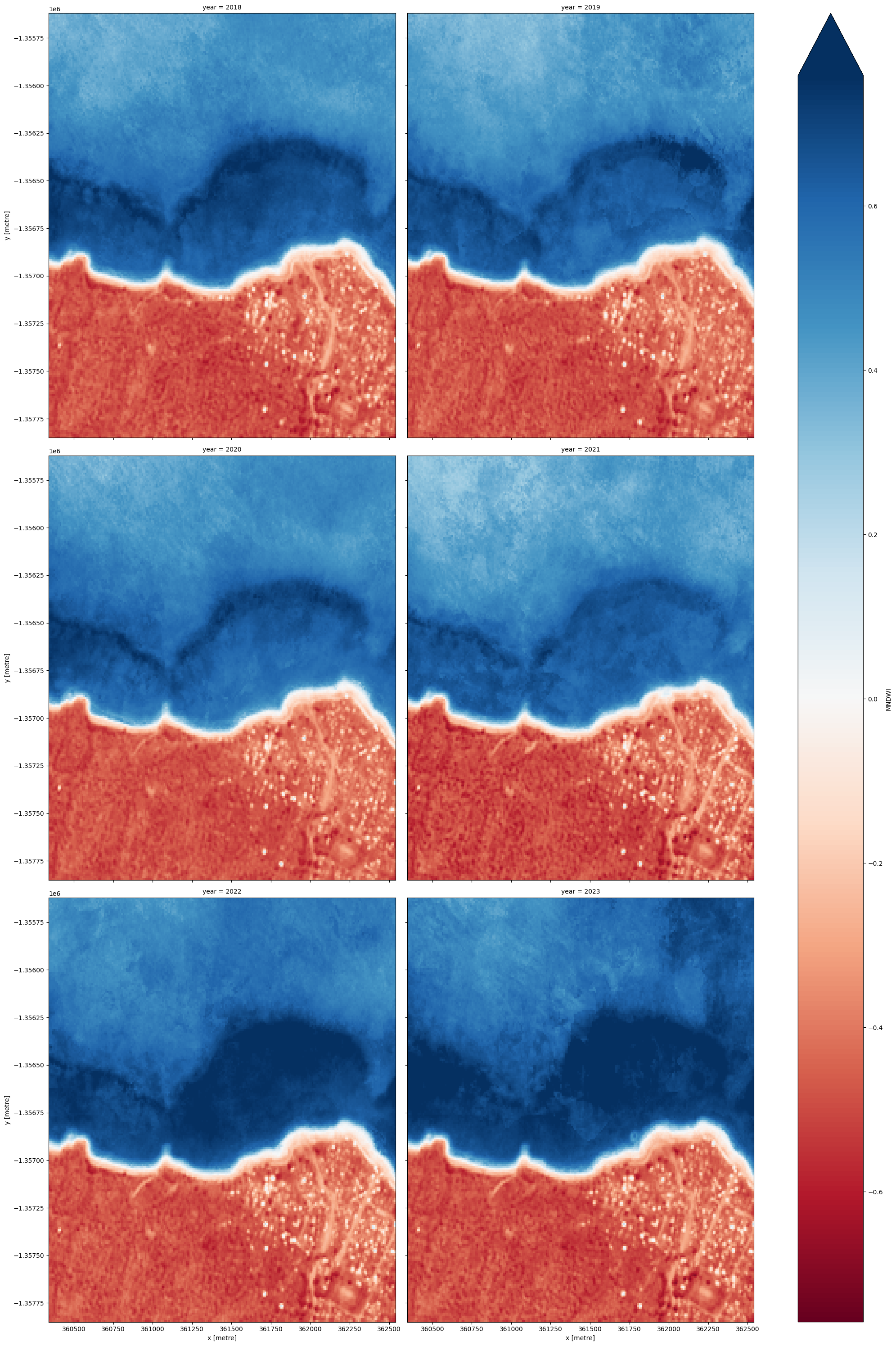

# Combine into summary images by `time_step`
landsat_summaries = (landsat_filtered[['MNDWI']]
                     .resample(time=time_step)
                     .median('time')
                     .compute()
                    )

# Shut down Dask client now that we have processed the data we need
client.close()

# Rename each image by year
landsat_summaries['time'] = landsat_summaries.time.dt.year
landsat_summaries = landsat_summaries.rename(time='year')

# Plot the output summary images
landsat_summaries.MNDWI.plot(col='year',
                       cmap='RdBu',
                       col_wrap=5,
                       vmin=-0.5,
                       vmax=0.5)
plt.show()

/usr/local/lib/python3.8/dist-packages/numpy/lib/nanfunctions.py:1217: RuntimeWarning: All-NaN slice encountered
  r, k = function_base._ureduce(a, func=_nanmedian, axis=axis, out=out,

Extract shorelines from imagery

We now want to extract an accurate shoreline for each each of the summary images above (e.g. 2014, 2015 etc. summaries). The code below identifies the boundary between land and water by tracing a line along pixels with a water index value of 0 (halfway between land and water water index values). It returns a vector file with one line for each time step:

# Extract waterline contours for the '0' water index threshold:
contour_gdf = subpixel_contours(da=landsat_summaries.MNDWI,
                                z_values=0,
                                dim='year',
                                crs=landsat_ds.geobox.crs,
                                affine=landsat_ds.geobox.transform,
                                output_path=f'annual_shorelines.geojson',
                                min_vertices=50).set_index('year')

# Preview shoreline data
contour_gdf

	geometry
year
2013	MULTILINESTRING ((291586.248 1582320.000, 2915...
2014	MULTILINESTRING ((291584.399 1582320.000, 2915...
2015	MULTILINESTRING ((291588.273 1582320.000, 2915...
2016	MULTILINESTRING ((291588.886 1582320.000, 2915...
2017	MULTILINESTRING ((291589.677 1582320.000, 2915...
2018	MULTILINESTRING ((291588.737 1582320.000, 2915...
2019	MULTILINESTRING ((291586.710 1582320.000, 2915...
2020	MULTILINESTRING ((291585.789 1582320.000, 2915...
2021	MULTILINESTRING ((291590.279 1582320.000, 2915...

Plot annual shorelines on an interactive map

The next cell provides an interactive map with an overlay of the shorelines identified in the previous cell. Run it to view the map (this step can take several minutes to load if the study area is large).

Zoom in to the map below to explore the resulting set of shorelines. Older shorelines are coloured in black, and more recent shorelines in yellow. Hover over the lines to see the time period for each shoreline printed above the map. Using this data, we can easily identify areas of coastline or rivers that have changed significantly over time, or areas that have remained stable over the entire time period.

# Plot shorelines on interactive map
contour_gdf.reset_index().explore(
    column='year',
    cmap='inferno',
    tiles=
    'https://server.arcgisonline.com/ArcGIS/rest/services/World_Imagery/MapServer/tile/{z}/{y}/{x}',
    attr='ESRI WorldImagery')

Make this Notebook Trusted to load map: File -> Trust Notebook

Calculate rates of coastal change

To identify parts of the coastline that are changing rapidly, we can use our annual shoreline data to calculate rates of coastal change in metres per year. This can be particularly useful to reveal hotspots of coastal retreat (e.g. erosion), or hotspots of coastal growth.

To do this, we first need to create a set of evenly spaced points at every 30 metres along the most recent shoreline in our dataset. These points will be used to plot rates of coastal change across our study area.

# Extract points at every 30 metres along the most recent shoreline
points_gdf = points_on_line(contour_gdf, index='2021', distance=30)
points_gdf.plot()

<AxesSubplot: >

Now that we have a set of modelling points, we can measure distances from each of the points to each annual shoreline. This gives us a table of distances, where negative values (e.g. -6.5) indicate that an annual shoreline was located inland of our points, and positive values (e.g. 2.3) indicate a shoreline was located towards the ocean. Because our points were created along our most recent 2021 shoreline, distances for 2021 will always have a distance of 0 m.

# For each 30 m-spaced point, calculate the distance from
# the most recent 2021 shoreline to each other annual shoreline
# in the datasets.
points_gdf = annual_movements(points_gdf,
                              contours_gdf=contour_gdf,
                              yearly_ds=landsat_summaries,
                              baseline_year=2021,
                              water_index='MNDWI')
points_gdf

	geometry	dist_2013	dist_2014	dist_2015	dist_2016	dist_2017	dist_2018	dist_2019	dist_2020	dist_2021	angle_mean	angle_std
0	POINT (291590.279 1582320.000)	4.03	5.88	2.01	1.39	0.60	1.54	3.57	4.49	0.0	89	20
1	POINT (291587.167 1582290.162)	1.50	5.44	0.82	1.81	1.47	2.00	2.27	5.73	0.0	96	20
2	POINT (291583.416 1582260.397)	-1.10	2.61	4.27	2.58	0.23	1.58	2.78	8.99	0.0	98	21
3	POINT (291577.686 1582230.951)	-2.81	1.39	3.56	-1.47	0.60	3.95	4.22	9.08	0.0	101	20
4	POINT (291569.148 1582202.198)	-6.03	3.56	2.75	-4.74	4.47	1.46	5.30	4.48	0.0	105	20
...	...	...	...	...	...	...	...	...	...	...	...	...
168	POINT (294174.465 1579086.293)	2.17	8.65	6.06	7.26	5.75	6.21	5.17	5.91	0.0	43	14
169	POINT (294193.384 1579063.042)	0.20	7.20	7.26	6.11	4.24	4.71	5.32	3.90	0.0	44	14
170	POINT (294212.415 1579039.874)	-0.99	6.44	8.60	5.82	2.66	4.83	5.00	5.59	0.0	48	16
171	POINT (294231.530 1579016.781)	-1.08	6.59	9.80	5.10	1.89	4.70	4.14	5.81	0.0	47	15
172	POINT (294249.685 1578992.963)	-1.77	5.44	9.26	3.36	3.01	4.04	1.04	4.73	0.0	48	17

173 rows × 12 columns

Finally, we can calculate annual rates of coastal change (in metres per year) using linear regression. This will add several new columns to our table:

• rate_time: Annual rates of change (in metres per year) calculated by linearly regressing annual shoreline distances against time (excluding outliers; see outl_time). Negative values indicate retreat and positive values indicate growth.

• sig_time: Significance (p-value) of the linear relationship between annual shoreline distances and time. Small values (e.g. p-value < 0.01 or 0.05) may indicate a coastline is undergoing consistent coastal change through time.

• se_time: Standard error (in metres) of the linear relationship between annual shoreline distances and time. This can be used to generate confidence intervals around the rate of change given by rate_time (e.g. 95% confidence interval = se_time * 1.96)

• outl_time: Individual annual shoreline are noisy estimators of coastline position that can be influenced by environmental conditions (e.g. clouds, breaking waves, sea spray) or modelling issues (e.g. poor tidal modelling results or limited clear satellite observations). To obtain reliable rates of change, outlier shorelines are excluded using a robust Median Absolute Deviation outlier detection algorithm, and recorded in this column.

# Calculate rates of change using linear regression
points_gdf = calculate_regressions(points_gdf=points_gdf,
                                   contours_gdf=contour_gdf)
points_gdf

	rate_time	sig_time	se_time	outl_time	dist_2013	dist_2014	dist_2015	dist_2016	dist_2017	dist_2018	dist_2019	dist_2020	dist_2021	angle_mean	angle_std	geometry
0	-0.284	0.293	0.250		4.03	5.88	2.01	1.39	0.60	1.54	3.57	4.49	0.0	89	20	POINT (291590.279 1582320.000)
1	-0.034	0.903	0.270		1.50	5.44	0.82	1.81	1.47	2.00	2.27	5.73	0.0	96	20	POINT (291587.167 1582290.162)
2	0.326	0.432	0.391		-1.10	2.61	4.27	2.58	0.23	1.58	2.78	8.99	0.0	98	21	POINT (291583.416 1582260.397)
3	0.684	0.149	0.422		-2.81	1.39	3.56	-1.47	0.60	3.95	4.22	9.08	0.0	101	20	POINT (291577.686 1582230.951)
4	0.636	0.256	0.514		-6.03	3.56	2.75	-4.74	4.47	1.46	5.30	4.48	0.0	105	20	POINT (291569.148 1582202.198)
...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...
168	-0.329	0.365	0.340		2.17	8.65	6.06	7.26	5.75	6.21	5.17	5.91	0.0	43	14	POINT (294174.465 1579086.293)
169	-0.266	0.477	0.355		0.20	7.20	7.26	6.11	4.24	4.71	5.32	3.90	0.0	44	14	POINT (294193.384 1579063.042)
170	-0.113	0.798	0.426		-0.99	6.44	8.60	5.82	2.66	4.83	5.00	5.59	0.0	48	16	POINT (294212.415 1579039.874)
171	-0.162	0.736	0.463		-1.08	6.59	9.80	5.10	1.89	4.70	4.14	5.81	0.0	47	15	POINT (294231.530 1579016.781)
172	-0.180	0.697	0.443		-1.77	5.44	9.26	3.36	3.01	4.04	1.04	4.73	0.0	48	17	POINT (294249.685 1578992.963)

173 rows × 16 columns

Plot rates of coastal change on an interactive map

Now that we have calculated rates of coastal change, we can plot these on an interactive map to identify parts of the coastline that are retreating or growing over time.

When the map appears below, hover your mouse over the coloured dots that appear along the coastline for a summary of recent coastal change at those locations. Red dots represent locations that are retreating (e.g. erosion), and blue dots represent locations that are growing.

|coastal\_change.jpg|

# Add human-friendly label for plotting
points_gdf['Coastal change'] = points_gdf.apply(
    lambda x:
    f'<h4>This coastline has {"<b>retreated</b>" if x.rate_time < 0 else "<b>grown</b>"} '
    f'by</br><b>{x.rate_time:.2f} m (±{x.se_time:.1f}) per year</b> since '
    f'<b>{contour_gdf.index[0]}</b></h4>',
    axis=1)
points_gdf.loc[points_gdf.sig_time > 0.05, 'Coastal change'] = (
    f'<h4>No significant trend of retreat or growth)</h4>')

# Add annual shorelines to map
m = contour_gdf.reset_index().explore(
    column='year',
    cmap='inferno',
    tiles=
    'https://server.arcgisonline.com/ArcGIS/rest/services/World_Imagery/MapServer/tile/{z}/{y}/{x}',
    tooltip=False,
    style_kwds={'opacity': 0.5},
    attr='ESRI WorldImagery')

# Add rates of change to map
points_gdf.explore(
    m=m,
    column='rate_time',
    vmin=-5,
    vmax=5,
    tooltip='Coastal change',
    cmap='RdBu',
)

Make this Notebook Trusted to load map: File -> Trust Notebook

Important note: This notebook may produce misleading rates of change for non-coastal waterbodies that might fluctuate naturally year-by-year. The full Digital Earth Africa Coastlines repository contains additional methods for producing more accurate rates of change by cleaning and filtering annual shoreline data to focus only on coastal shorelines.

Export rates of change to file

Finally, we can export our output rates of change file so that it can be loaded in GIS software (e.g. ESRI ArcGIS or QGIS).

points_gdf.to_crs('EPSG:4326').to_file('rates_of_coastal_change.geojson')

Drawing conclusions

Here are some questions to think about: * What can you conclude about the change in the shoreline? * Which sections of the shoreline have seen the most change? * Is the change consistent with erosion? * What other information might you need to draw additional conclusions about the cause of the change?

Next steps

When you are done, return to the “Set up analysis” cell, modify some values (e.g. time_range, tide_range, time_step or lat/lon) and rerun the analysis. If you’re going to change the location, you’ll need to make sure Landsat data is available for the new location, which you can check at the DE Africa Explorer (use the drop-down menu to view all Landsat products).

For more information about the method behind this notebook, read the scientific paper: > Bishop-Taylor, R., Nanson, R., Sagar, S., Lymburner, L. (2021). Mapping Australia’s dynamic coastline at mean sea level using three decades of Landsat imagery. Remote Sensing of Environment 267, 112734. Available: https://doi.org/10.1016/j.rse.2021.112734

---

Additional information

License: The code in this notebook is licensed under the Apache License, Version 2.0. Digital Earth Africa data is licensed under the Creative Commons by Attribution 4.0 license.

Contact: If you need assistance, please post a question on the Open Data Cube Slack channel or on the GIS Stack Exchange using the open-data-cube tag (you can view previously asked questions here). If you would like to report an issue with this notebook, you can file one on Github.

Compatible datacube version:

print(datacube.__version__)

1.8.8

Last Tested:

from datetime import datetime
datetime.today().strftime('%Y-%m-%d')

'2023-03-31'
