Sentinel-3 OLCI L2 LAND

Date modified: September 2025

The Sentinel-3 OLCI Level-2 Land Full Resolution (OL_2_LFR) product delivers high-quality, atmospherically corrected, satellite-derived observations for monitoring vegetation condition, canopy functioning, and land–atmosphere interactions. Acquired by the Ocean and Land Colour Instrument (OLCI) onboard the Sentinel-3A and Sentinel-3B satellites, the product provides global coverage at 300-meter resolution, with a revisit time of 1–2 days at the equator when both satellites are operational. The mission’s 21 spectral bands, spanning visible to near-infrared wavelengths, enable detailed retrievals of land bio-geophysical parameters.

Key outputs include the OLCI Terrestrial Chlorophyll Index (OTCI), Green Instantaneous Fraction of Absorbed Photosynthetically Active Radiation (GIFAPAR), and Integrated/Total Column Water Vapour (IWV/TCWV), along with per-pixel quality and science flags. These products are derived using advanced atmospheric correction, cloud screening, and top-of-canopy reflectance retrieval algorithms, making them suitable for applications such as drought monitoring, vegetation productivity assessment, and agricultural early warning.

Comprehensive documentation—including the OLCI Land Product User Guide, algorithm theoretical basis documents, and technical notices—is freely available to support researchers, environmental agencies, and operational monitoring services.

Digital Earth Africa (DE Africa) provides open and free access to Sentinel-3 OLCI L2 Land Full Resolution products for the African continent via its cloud-hosted infrastructure and the DE Africa Sandbox. This enables direct analysis in cloud environments, and integration with other DE Africa datasets.

Spécifications 

Relevant coverage and metadata for each of the datasets can be viewed on DE Africa Metadata Explorer:

s3_olci_l2_lfr:

A Jupyter Notebook which demonstrates loading and visualisng the products in the Sandbox is also available.

Sentinel-3 OLCI L2 Land Full Resolution Product 

Spécification	Sentinel-3 OLCI L2 Land Full Resolution (300 m)
Cell size (metres)	300 x 300
Coordinate Reference System	EPSG:4326 (WGS 84)
Résolution temporelle	Daily to 2-day
Plage temporelle	2016 – Present
Ensemble de données parent	Sentinel-3A/B OLCI (21 bands)
Fréquence de mise à jour	Near-Real-Time (<3 h) & NTC (~48 h)
Access	Free and open via DE Africa

Sentinel-3 OLCI Land Measurements – Descriptions 

GIFAPAR (Green Instantaneous FAPAR)

Fraction of absorbed photosynthetically active radiation by green vegetation at observation time, indicating photosynthetic activity.
IWV_L (Integrated Water Vapour – Land)

Total column water vapour content in the atmosphere above each land pixel, expressed in kg/m².
OTCI (OLCI Terrestrial Chlorophyll Index)

Index sensitive to canopy chlorophyll content, derived from OLCI spectral bands to assess vegetation health.
RC681 (Rectified Reflectance – 681 nm)

Atmospherically corrected surface reflectance in the red band (681 nm), used in vegetation indices and biophysical models.
RC865 (Rectified Reflectance – 865 nm)

Atmospherically corrected surface reflectance in the near-infrared band (865 nm), paired with RC681 for vegetation monitoring.
LQSF (Land Quality & Science Flags)

Per-pixel quality flags indicating conditions such as land, water, cloud, or snow to support reliable analysis.
dataMask

Binary mask identifying valid (1) versus invalid (0) observations.

Table 2: Sentinel-3 OLCI L2 Land Measurements

Measurement	Data Type	Confidence / Quality Flags
GIFAPAR (Green Instantaneous FAPAR)	Vegetation Parameter	No
IWV_L (Integrated Water Vapour – Land)	Atmospheric Parameter	No
OTCI (OLCI Terrestrial Chlorophyll Index)	Vegetation Parameter	No
RC681 (Rectified Reflectance – 681 nm)	Reflectance Data	No
RC865 (Rectified Reflectance – 865 nm)	Reflectance Data	No
LQSF (Land Quality & Science Flags)	Quality / Mask Info	Yes
dataMask	Quality / Mask Info	Yes

Geographic Extent 

Specific temporal and geographic extents for the product can be explored interactively using the Digital Earth Africa Metadata Explorer.

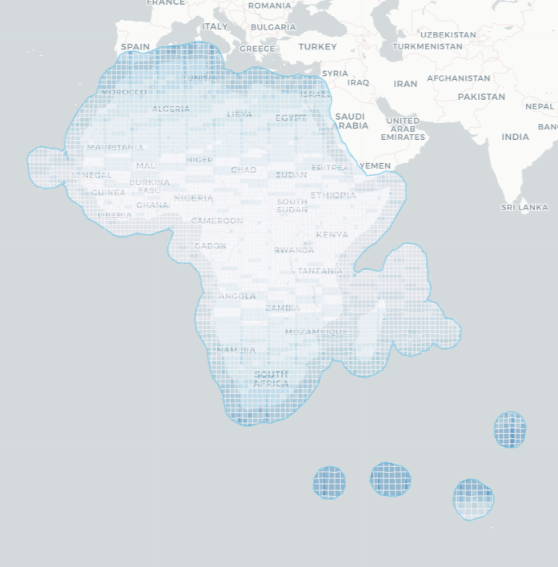

Figure 1: Sentinel-3 OLCI L2 geographic extent

Sentinel-3_OLCI_L2_LAND data extent

Traitement 

The complete processing methodology for these products is detailed in the Technical Manual.

Médias et exemples d’images 

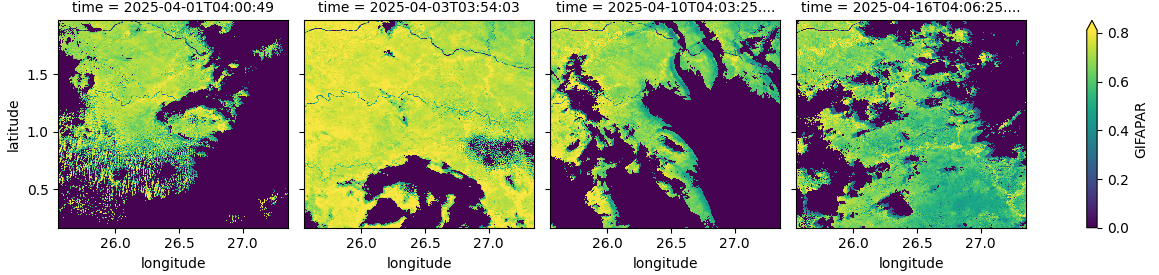

Image 1: The image covers a central Congo Basin belt (evergreen lowland rainforest) in Democratic Republic of the Congo (DRC), northeastern part of the country—within Tshopo Province showing the Fraction of Absorbed Photosynthetically Active Radiation (green component) at the time of observation

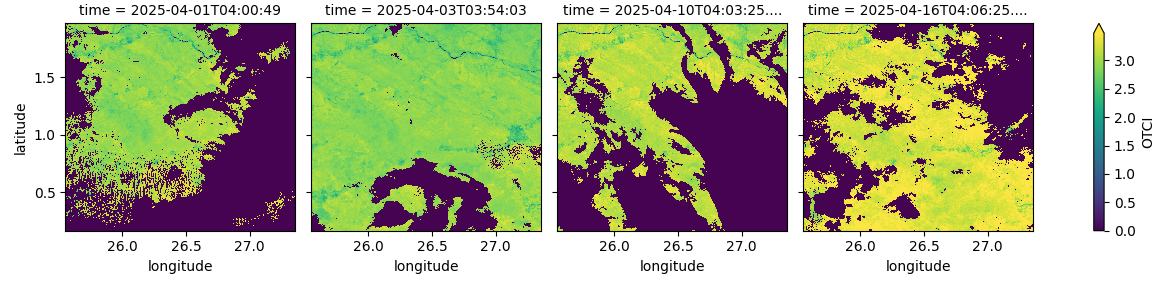

Image 2: The image covers a central Congo Basin belt (evergreen lowland rainforest) in Democratic Republic of the Congo (DRC), northeastern part of the country—within Tshopo Province showing the visualizes the OLCI Terrestrial Chlorophyll Index (OTCI)

OCTI

Licence 

Licence internationale CC BY Attribution 4.0

Remerciements 

The Sentinel-3 OLCI Level-2 Land Full Resolution products are produced by the European Space Agency (ESA) within the framework of the Copernicus Programme, and are freely provided via the Copernicus Open Access Hub and Copernicus Data Space Ecosystem. Data access and regional support are enabled by Digital Earth Africa.

Accès aux données 

Amazon Web Services S3 

The Digital Earth Africa Sentinel-3 OLCI L2 LAND product can be accessed from the associated S3 bucket.

Tableau 5 : Détails de l’accès aux données AWS

Détails AWS S3
ARN du compartiment	`arn:aws:s3:::deafrica-sentinel-3`
Nom du produit	`s3_olci_l2_lfr`

Le seau est situé dans la région « af-south-1 » (Le Cap)

Table 6: AWS file path convention

Élément de chemin de fichier	Description	Exemple
« nom du produit »	`s3_olci_l2_lfr`
`version`	Version du produit	« 1-0-0 »
`chemin`	path number ranging from `157` to `206`.	« 165 »
`ligne`	row number ranging from `052` to `072`.	« 052 »
`année`	Année de collecte des données	« 2019 »
`mois`	Mois de l’année où les données ont été collectées (avec des zéros non significatifs)	« 03 »
`jour`	Jour du mois où les données ont été collectées (avec des zéros non significatifs)	« 28 »

Services Web OGC (OWS)

Ce produit est disponible via OWS de DE Africa.

Tableau 7 : Détails d’accès aux données OWS.

Détails de l’OWS
Nom	« DE Africa Services »
URL des services de cartographie Web (WMS)	`https://ows.digitalearth.africa/wms?version=1.3.0`
URL du service de couverture Web (WCS)	`https://ows.digitalearth.africa/wcs?version=2.1.0`
Noms des calques	`s3_olci_l2_lfr`

Les détails de Digital Earth Africa OWS peuvent être trouvés sur https://ows.digitalearth.africa/.

Pour obtenir des instructions sur la façon de se connecter à OWS, consultez « ce tutoriel <../web_services/index.ipynb> ».

Open Data Cube (ODC)

The Sentinel-3 OLCI Level-2 collection can be accessed through the Digital Earth Africa ODC API, which is available through the Digital Earth Africa Sandbox.

ODC product name: s3_olci_l2_lfr
